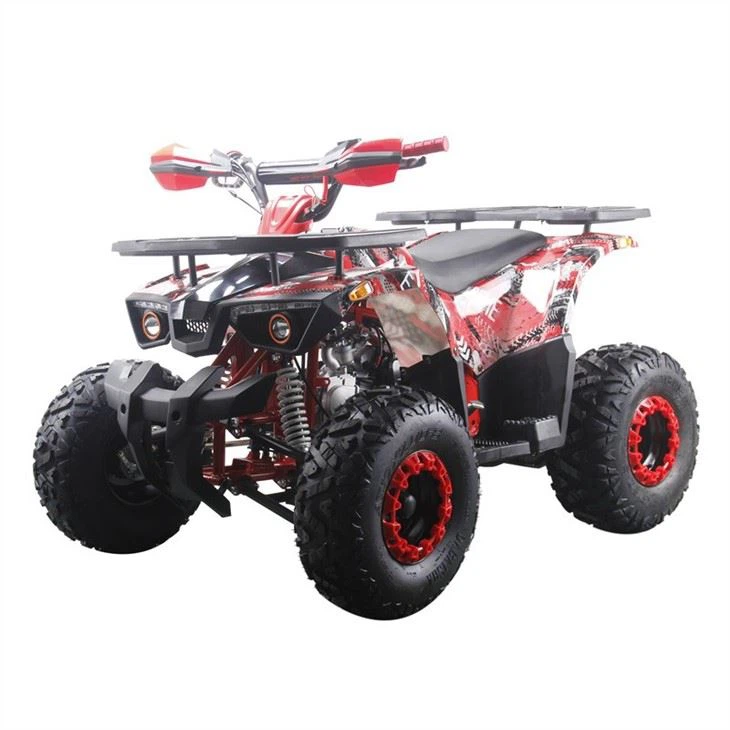

125cc adult ATV quad bike four wheeler quad 125cc
Engine | 125cc air-cooling Single-cylinder four Stroke, full automatic, electric start (110cc available) |
Transmission | chain drive |
Plastic | Camo plastic, new bull |
Ignition mode | CDI |
Frame | heavy duty steel frame |
Handlebar | steel handlebar, with protector |
Exhaust | steel exhaust pipe |
Front suspension | high performance double spring shock absorber |
Rear suspension | single spring rear shock absorber |
Max load | 150kgs |
Tank capacity | 3L |
Wheel | steel wheels front/rear 7inch, rim cover |
Carton size | 1250X770X650mm |
Loading qty | 20FT: 36pcs; 40HQ: 108pcs |
125cc quad bike 125cc ATV four wheeler motorcycle more details as follow:
Automatic Transmission
16 x 8-7 Tires have excellent traction
Speeds of up to 45mph
Great Headlights & Taillights
Comfortable Seat
Front and Rear Plastic Racks
Reverse Gear: full automatic don’t have gear. If you need, we can match reverse gear for you.
Engine Data
Bore × Stroke: 54×54
Compression Ratio: 9.1:1
Max Power (Kw/r/m): 6.2Kw/7000
Max Torque (N·m/r/min): 9.0/5000
Max Speed: 35+ (Depending on Riders Weight and Road Conditions)
Battery: 12V/5Ah
Frame / Body / Suspension / Brakes
Suspensions: oil pressure shock absorber
Front Hand Brake: Drum
Rear Foot Brake: Disc
Front Tires: 16X8-7
Rear Tires: 16X8-7
Capacities / Dimensions
Max Loading(Lbs): 154
Gross Weight (lbs): 220
Net Weight (lbs): 187
Overall Length: 60.2″
Overall Width: 37″
Overall Hight: 34.6″
Wheelbase: 35.4″
Seat Height: 27.6″
Ground Clearance (inch): 2.6″
Fuel Capacity: 2.5L
Safety / Control
Engine Kill Switch: Yes
Speed Limiter: Yes
Remote Control: No, if you need, we can match.
Headlight: Yes
Tail Light: Yes
